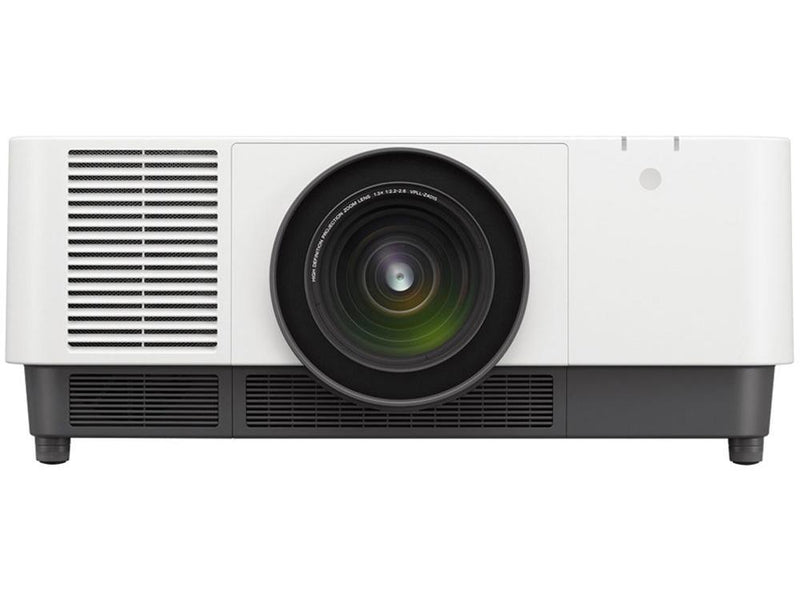

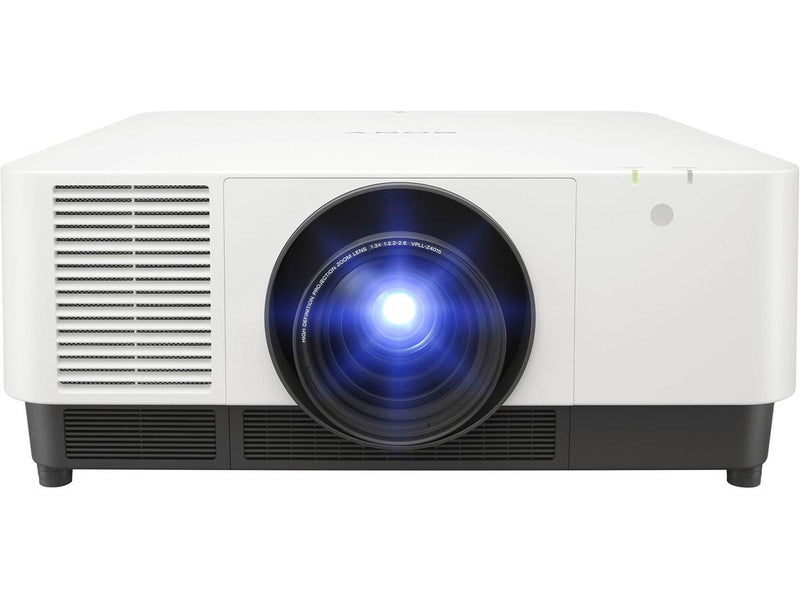

The Sony VPL-FHZ101L is a high-brightness laser projector delivering 10,000 lumens and WUXGA resolution, designed for large venues such as conference halls, lecture theaters, and museums.
Exceptional Brightness and Clarity: With 10,000 lumens and WUXGA (1920 x 1200) resolution, this projector ensures vivid and sharp visuals, even in well-lit environments.
Flexible Installation: Compatible with a range of optional lenses (sold separately), the VPL-FHZ101L offers versatile installation options to suit various venue sizes and configurations.
Reliable Performance: Featuring a laser light source with up to 20,000 hours of maintenance-free operation, this projector provides consistent brightness and reduces downtime.
Specifications:
Model:
VPL-FHZ101L
Display Type:
LCD Projector
Image Brightness:
10000 ANSI lumen
Image Brightness(Color):
10000 ANSI lumen
Brightness (Reduced):
7700 ANSI lumen
Native Resolution:
1920 x 1200
Display Format:
FHD
Image Aspect Ratio:
16:10
Min Image Size:
Depend on Lens Mm
Max Image Size:
Depend on Lens Mm
Focus Adjustment:
Manual; Powered
Zoom Type:
Powered / Manual (Depend on lens)
Zoom Range:
Depend on Lens
Keystone Correction Direction:
Horizontal, vertical
Vertical Keystone Correction:
-30 / +30 degrees
Horizontal Keystone Correction:
-30 / +30 degrees
Lens Shift Type:
Powered
Lens Shift Direction:
Vertical, Horizontal
Vertical Lens Shift:
Depends on the lens
Horizontal Lens Shift:
Depends on the lens
Video Input:
Video signal input 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p, 1080/30p*4
Network Connectivity:
LAN
Connectivity Technology:
Wired
Sound Emission:
39 dB
Lamp Type:
Laser diode
Interfaces:
INPUT A: RGB / Y PB PR input connector: 5 BNC (female), INPUT B: RGB input connector: Mini D-sub 15-pin (female), INPUT C: DVI input connector: DVI-D 24-pin (single link), HDCP support, HDCP: v1.4, INPUT D: HDMI input connector: HDMI 19-pin, HDCP support, HDCP: v1.4, INPUT E: HDBaseT interface connector: RJ45, 3 play, INPUT F: Optional adaptor slot for 3G-SDI Input Adaptor (BKM-PJ20), INPUT G: HTML Viewer, OUTPUT 1: Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female), USB-1: Type-A x 1, USB-2;Type-B x 1 (for service), REMOTE: D-sub9pin male/RS232C, LAN: RJ45, 10BASE-T/100BASE-TX/1000BASE-T
Power / Device Type:
Power Supply
Power Consumption Operational:
840 Watt
Power Consumption Standby:
0.5 Watt
Power / Voltage Required:
AC 100 V to 240 V
Enclosure Color:
White
Width:
544 Mm
Depth:
564 Mm
Height:
205 Mm
Weight:
26 Kg
Features:
BrightEra, Reality Creation
Audio&Video
Audio Output:
Monitor output for Input A/Input B Connector: Mini D-sub 15-pin (female)
Lens
Lens Shift Direction:
Vertical, Horizontal
Focus Adjustment:
Manual; Powered
Zoom Type:
Powered / Manual (Depend on lens)
Zoom Range:
Depend on Lens
Keystone Correction Direction:
Horizontal, vertical
Vertical Keystone Correction:
-30 / +30 degrees
Horizontal Keystone Correction:
-30 / +30 degrees
Lens Shift Type:
Powered
Vertical Lens Shift:
Depends on the lens
Horizontal Lens Shift:
Depends on the lens
Special Feature
Min Operating Temperature:
0 Celsius
Max Operating Temperature:
45 Celsius
Humidity Range Operating:
20% to 80% (no condensation)
Sound Emission:
39 dB
COO:
CHINA
TAA compliance:
No
Image Brightness:
10000 ANSI lumen
Native Resolution:
1920 x 1200
Display Format:
FHD
Image Aspect Ratio:
16:10
Min Image Size:
Depend on Lens Mm
Max Image Size:
Depend on Lens Mm
Video Input
Video Input:
Video signal input 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i The following items are available for digital signal only: 1080/60p, 1080/50p, 1080/24p, 1080/30p*4
