8, 000 LUMENS, LASER, 4K (3840 X 2400) RESOLUTION WITH QUAD PIXEL DRIVE, FILTER-FREE, WHITE

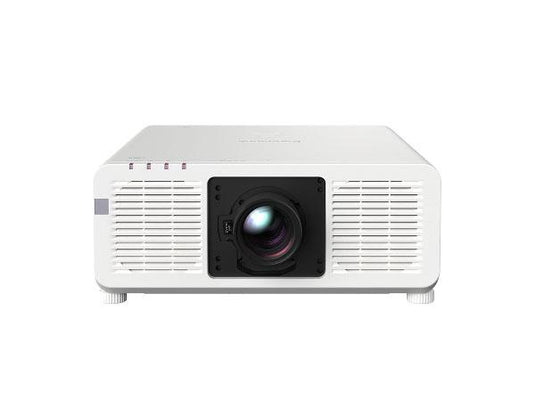

As the world enters a new era of engagement, entertainment venues are looking for AV technology that captivates audiences with exceptional, elevated levels of experiences by visually stimulating their senses to create emotional and lasting connections.The next-generation PT-REQ80 1-Chip DLP 4K Laser Projector is designed to streamline productions and expand the endless possibilities of entertainment by delivering exceptional, highly engaging immersive experiences with up to 8,000lm brightness, 4K resolution, and 240 Hz projection capability.
Specifications:
Model:
PTREQ80WU
Display Type:
DLP Projector
Image Brightness:
8200 ANSI lumen
Native Resolution:
3840 x 2160
Display Format:
4K Ultra HD
Image Contrast Ratio:
20000:1
Image Aspect Ratio:
16:10
Throw Ratio:
1.36 - 2.19:1
Min Image Size:
70 Inch
Max Image Size:
700 Inch
Focus Adjustment:
Powered
Zoom Type:
Powered zoom
Keystone Correction Direction:
YES
Vertical Keystone Correction:
+/- 40 degree
Horizontal Keystone Correction:
+/- 40 degree
Lens Shift Direction:
From the origin point of the lens mounter
Vertical Lens Shift:
+/-29%
Horizontal Lens Shift:
+/-60%
Network Connectivity:
LAN
Connectivity Technology:
Wired
Sound Emission:
35 dB
Lamp Type:
Laser diode
Interfaces:
Terminals | SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant); Terminals | LAN: RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible; Terminals | DC OUT: USB Type A x 1 (for power supply, DC 5 V, 2 A); Terminals | SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant); Terminals | USB: USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory; Terminals | REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel); Terminals | Expansion Slot: Open slot for for function boards, Intel SDM compatible; Terminals | REMOTE 1: M3 stereo mini-jack x 1 for wired remote control; Terminals | REMOTE 1 OUT: M3 stereo mini-jack x 1 for link control (for wired remote control); Terminals | HDMI 1/2 IN:HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); Terminals | DisplayPort:DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); Terminals | Multi Sync In:BNC x 1;
Power / Device Type:
Power Supply
Power Consumption Operational:
600 Watt
Power / Voltage Required:
AC 100-240 V, 50/60 Hz
Enclosure Color:
WHITE
Width:
498 Mm
Depth:
538 Mm
Height:
212 Mm
Weight:
28.8 Kg
Features:
Dynamic Visuals Take Production to New Heights;
Effortless Workflow, Improved Expandability;
New Cabinet Design for Maintenance-Free Operation;
